RoofJoint a roof expansion joint that is a patented dual-seal, double-flanged, extruded thermoplastic rubber system for sealing expansion joints in roofs, plaza assemblies, green and vegetative roofs. Watertightness is achieved through positive integration with the roofing membrane and a purpose-designed system for transitioning between the joint in the roof and joints in walls.

The waterproofing element of most other bellows roof expansion joints is a looped membrane. The loop either hangs down into the joint or is humped up by means of a foam backing. Either way, looped bellows membranes don't work well at the transition from the roof joint to wall joints and suffer from having only one layer of sealing.

Unique to RoofJoint is the double-level flange. This flange allows multi-layered, watertight integration with the roofing membrane. The lower flange is welded or adhered to the roof membrane alongside the joint opening. Termination bar and anchors mechanically lock the flange to the roof decking or blocking. The upper flange counterflashes the termination bar and underlying membrane ensuring that penetrations made by the attachment of the termination bar are completely sealed. The upper flange is further flashed to the roofing membrane by means of the roofing manufacturers' standard flashing tape or by over-welding a strip of roofing.

Movement at the joint is accommodated by the folding design of the gland. The double-cell configuration provides two levels of sealing. The geometric shape is purpose-designed for the lowest strain during movement to ensure longevity.

In addition to flat roof applications, RoofJoint can be effectively used for softscape plazas, green or garden roofs, and blue roofs. RoofJoint can be used in split-slab and hardscaped decks when drainage or other construction may be impeded by the expansion joint protruding above the structural deck elevation. In these cases an additional expansion joint seal would be needed at the wearing course. (See SJS, DSM and DSM-DS.) As with roof applications where a fire-rated seal is also required, Emshield DFR can be installed directly below the RoofJoint.

Most importantly, wherever RoofJoint is used, you can seal the roof to wall interface using Sika Emseal's unique RoofJoint Closure to marry RoofJoint to Seismic Colorseal in the vertical wall expansion joints.

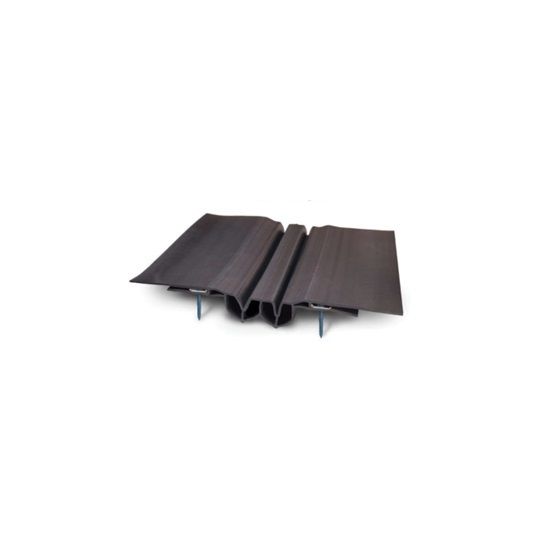

Emseal 4 in RoofJoint Black
