Quadra-Tilt Design Want to tilt heavy loads without the expense of a powered tilt actuator? Quadra-Tilt enables a single operator to easily move loads between upright and flat positions.
Highly Adaptable Lift Frame With removable extension arms and (re)movable pad mounts, this lifter can be used on almost any size or shape of load up to 1400 lbs (635 kg)!
Intelli-Grip Technology This WPG-exclusive technology oversees power and vacuum systems, increasing productivity and improving safety. Download the Intelli-Grip App to monitor the lifter from a distance!
Intelli-Grip Technology Available exclusively from Powr-Grip®! Actively monitors power and vacuum systems to increase safety and productivity, using LCD-screen messages, diagnostic codes and other features
Dual Vacuum System Features two independent air-line circuits to reduce risk of workplace accidents
Battery and Charger Provide independent, rechargeable power source for cord-free lifter operation in any location; on-board charger features status indicator and automatic shut-off
Battery Gauge Shows energy level in real time, to help determine when charging is needed
Notification Buzzer and Strobe Light Alert operator of problems with power or vacuum system, with various patterns of sound and light to indicate severity; back-up battery provides independent power for buzzer
Green Lift Light Provides visual assurance to know when vacuum is sufficient for lifting
Vacuum Gauges Feature green and red zones to clearly indicate whether vacuum levels are sufficient for lifting
Vacuum Line Filters Prevent liquid and other contaminants from damaging the vacuum generating system
Vacuum Reserve Tanks Increase battery run-time by reducing pump cycles needed to maintain vacuum
Spring-Mounted Vacuum Pads Automatically adjust to match the angle of load surfaces, easing attachment
Remote Control System (59906) Controls attach, release and other powered functions up to 250' [76 m] away for installing windows and more in multi-story buildings
Forklift Adapter (95457) Works with telehandlers on construction sites and forklifts in warehouses or wherever a crane is not practical
Pad Frame T-Arm Assemblies (97465 & 97465HV) Adapt lifter for convenient handling of insulated metal panels or other loads with textured surfaces (sold in pairs)
Adjustable Spacers for Movable Pad Mounts (93101 & 93101AM) Enable lifters to handle windows with mullions or other loads with surface obstructions
Alternative Vacuum Pad 10" [25 cm] diameter, concave pad (G0750) for handling curved loads (Specifications not as listed above. Please contact us for more information)
Alternative Pad Compounds Specially designed for heat resistance, marking resistance, coated surfaces and other purposes
Shipping Case (53007) Provides protection for storing and shipping the lifter
MRT Dolly (98790) Allows for easy transport and storage of the lifter
DESIGN STANDARDS ASME B30.20 (BTH-1 Design Category "B", Service Class "0"): Industry standards established by the American Society of Mechanical Engineers (ASME) and published by the American National Standards Institute (ANSI) CE: Regulatory standards for health and safety required in the European Union AS 4991: Regulatory standard required in Australia

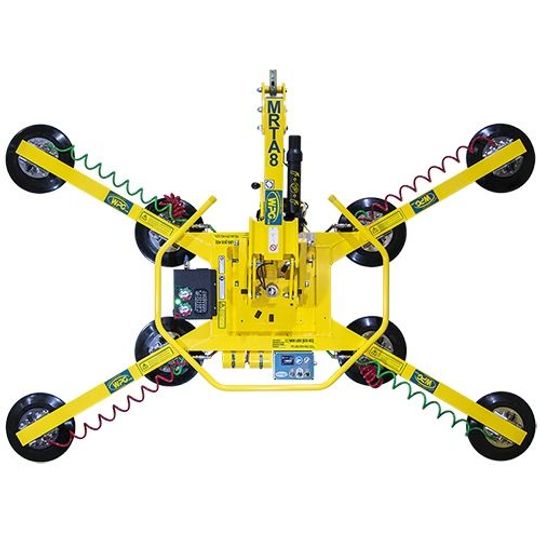

WPG Powr-Grip MRTA811LDC3 Quadra-Tilt Rotator for Flat and Smooth Surfaces

Product DetailsExpand

SpecificationsExpand

DocumentsExpand
